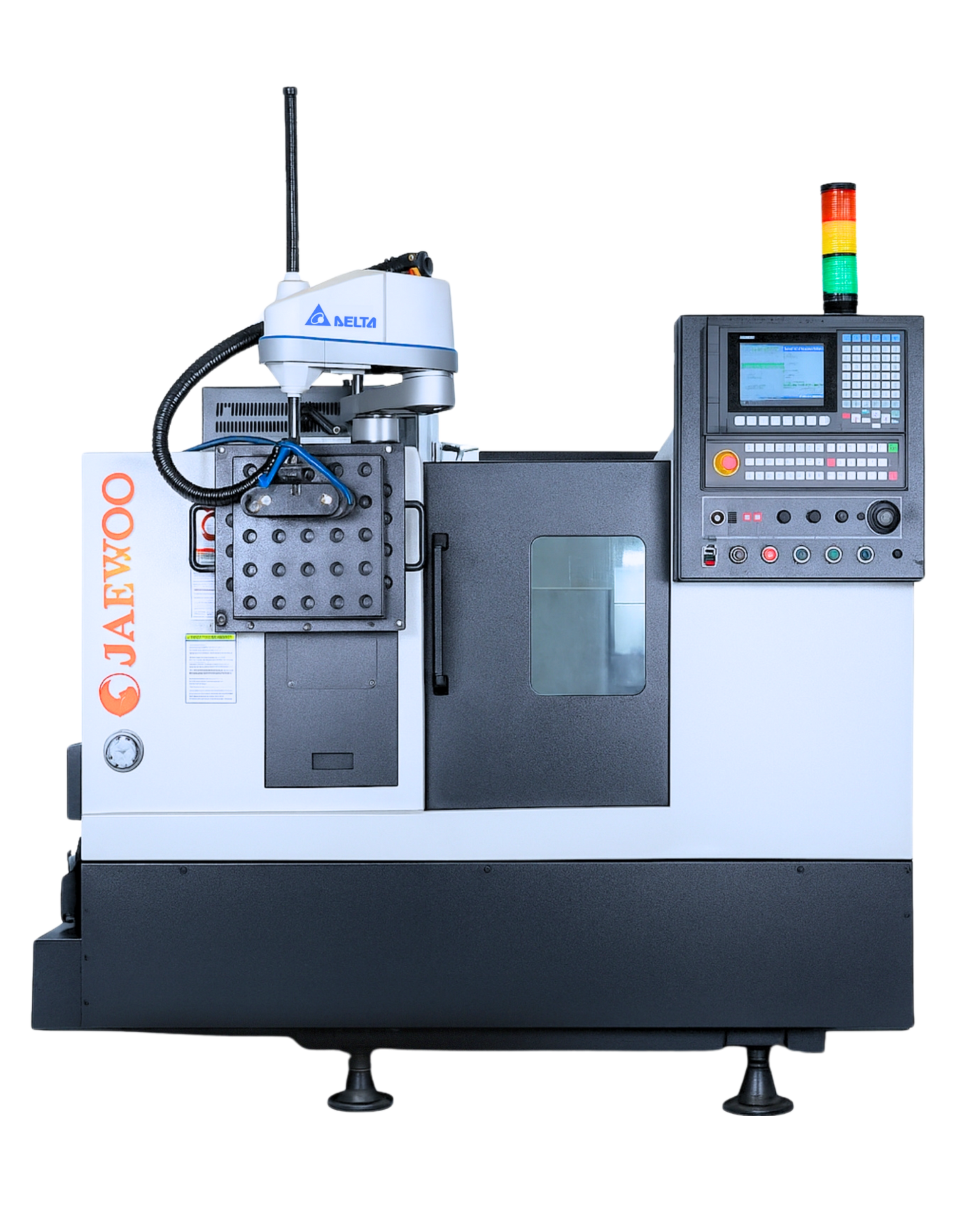

Jaewoo Navyug Robotic CNC Lathe Machine
The Jaewoo Navyug Robotic CNC Lathe Machine is a state-of-the-art CNC turning center designed specifically for automatic loading, precision machining, and high-volume production environments. Integrating robotic automation, this machine significantly enhances productivity while reducing the need for manual labor. It offers a maximum turning diameter of 150 mm, spindle speeds ranging from 50 to 3500 RPM, and exceptional positioning accuracy of ±0.007 mm, ensuring consistent machining quality. This lathe is an excellent fit for applications in automotive parts manufacturing, mass production, job work, and precision engineering industries.
Key Features – Jaewoo Navyug Robotic CNC Model
- Robotic CNC Automation: Designed for automatic loading and unloading to minimize manpower dependency and increase operational efficiency
- Compact Turning Capacity: Maximum turning diameter of 150 mm, ideal for small and precision components
- Optimized Swing Range: 400 mm over bed and 135 mm over carriage, providing flexibility for diverse machining tasks
- Efficient Chuck Size: 165 mm chuck ensures secure and reliable holding of components during machining
- Axis Travel: X-axis travel of 420 mm and Z-axis travel of 250 mm for smooth and precise machining movements
- High-Speed Spindle Performance: Powered by a 5.5/7.5 kW motor with a spindle speed range of 50–3500 RPM for versatile machining capabilities
- A2-5 Spindle Nose: Guarantees stable, accurate turning performance
- Efficient Bar Capacity: Spindle bore of 41 mm and draw bar capacity of 30 mm to accommodate various bar sizes
- Linear/Gang Tooling: Supports 1 to 6 tools, enabling faster machining cycles and improved productivity
- High Accuracy: Positioning accuracy of ±0.007 mm and repeatability of ±0.005 mm for consistent precision
- Compact Machine Design: Weighs approximately 2200 kg with dimensions of 1900×1350×1750 mm, suitable for space-conscious production floors
- Ideal for Mass Production: Perfectly suited for automotive parts, precision components, and high-volume machining operations
This machine combines automation, precision, and efficiency to meet the rigorous demands of modern manufacturing industries.
