Jaewoo VTL-550 CNC Vertical Turning Lathe | FANUC Controller

Jaewoo VTL-550 CNC Vertical Turning Lathe | FANUC Controller

MRP | Selling Price

Rs. 4,090,999.00
Rs. 4,094,000.00 Rs. 4,090,999.00
10% Sold out
Shipping calculated at checkout.

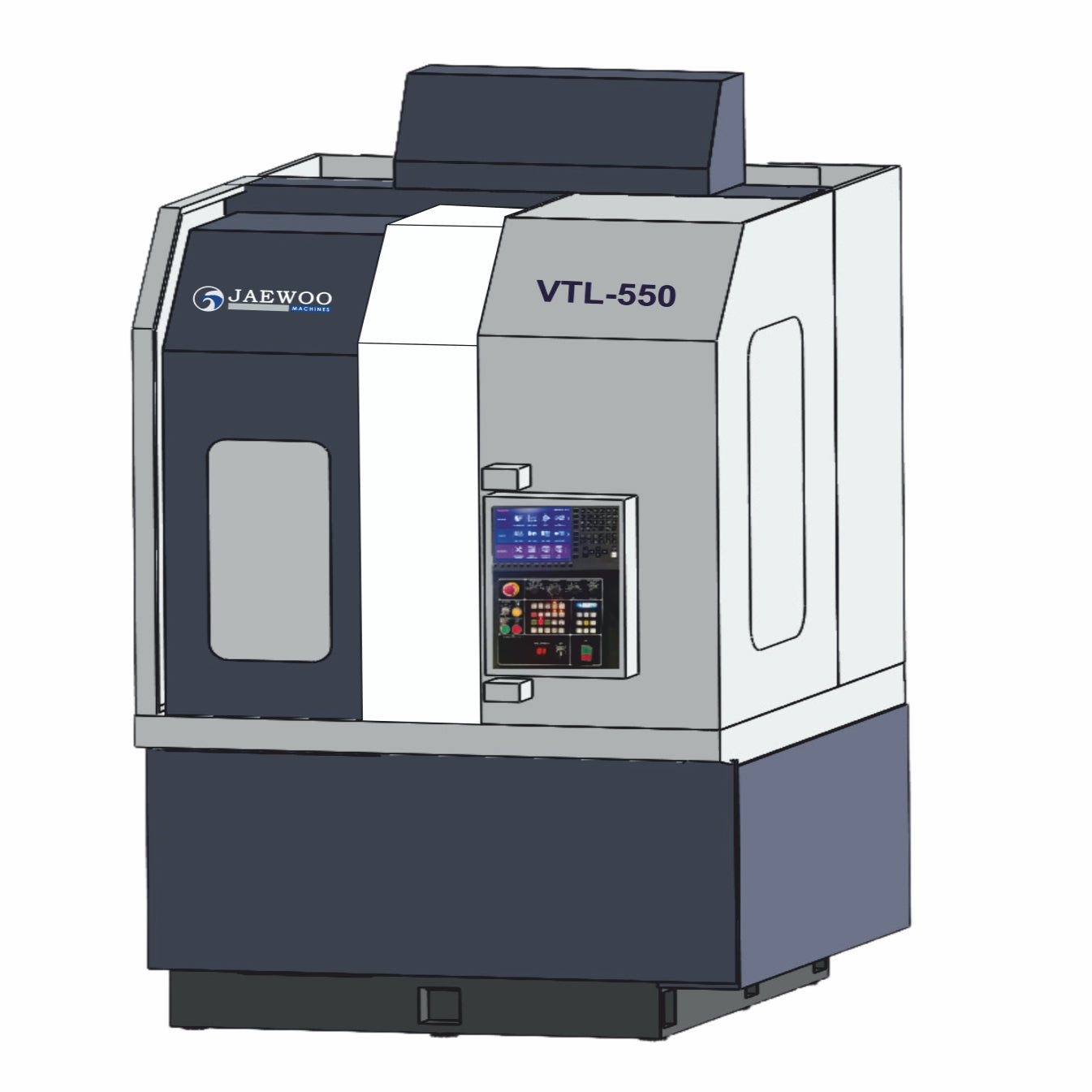

Jaewoo VTL-550 CNC Vertical Turning Lathe with FANUC Controller

The Jaewoo VTL-550 CNC Vertical Turning Lathe is a high-precision, heavy-duty machine designed for demanding industrial machining applications. Constructed with a rigid structure and equipped with advanced CNC technology, it delivers excellent stability, precise cutting, and consistent results. Powered by the reliable FANUC Controller, the VTL-550 offers smooth automation, user-friendly operation, and dependable performance, making it suitable for a wide range of industrial uses.

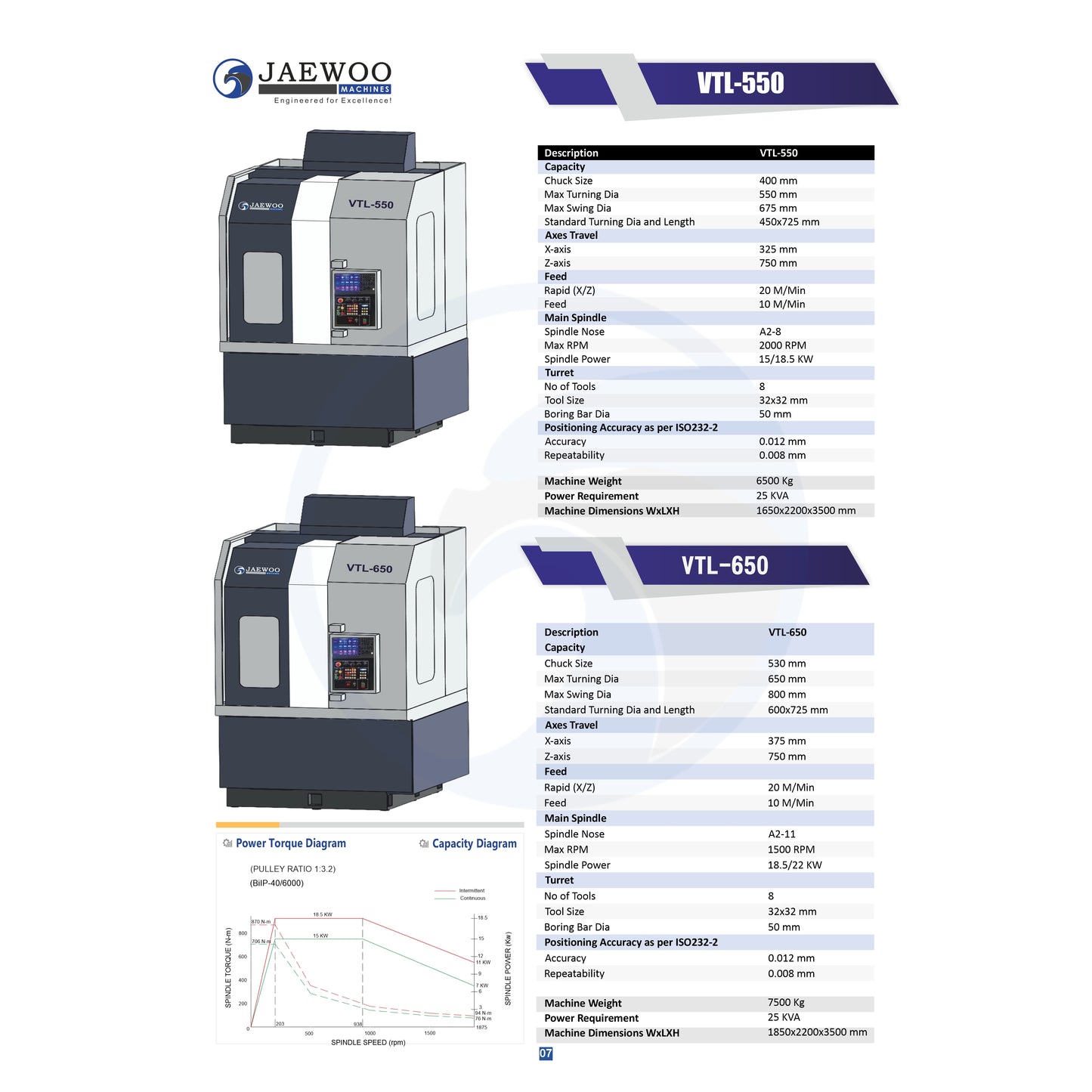

Key Features – Jaewoo VTL-550

  • Efficient Turning Capacity: Supports a maximum turning diameter of 550 mm and a swing diameter of 675 mm, ideal for medium to large components
  • High-Speed Spindle Performance: Capable of spindle speeds up to 2000 RPM powered by a 15/18.5 kW motor for precision machining tasks
  • Stable Axis Movement: X-axis travel of 325 mm and Z-axis travel of 750 mm allow for accurate and flexible machining operations
  • Advanced FANUC Servo System: Ensures smooth CNC control and consistent machining output
  • 400 mm Chuck Size: Suitable for securely holding a wide variety of industrial workpieces
  • 8-Station Turret: Enables quick tool changes, enhancing machining efficiency and reducing downtime
  • High Accuracy Levels: Positioning accuracy of 0.012 mm with repeatability of 0.008 mm for precise machining requirements
  • Rapid Feed Rate: Up to 20 m/min feed rate accelerates cycle times and boosts productivity
  • Rigid Machine Build: Weighs approximately 6500 kg, providing vibration-free and stable machining performance
  • Optimized Power Usage: Operates efficiently with a 25 KVA power requirement for industrial environments
  • Compact Footprint: Dimensions of 1650×2200×3500 mm, designed to fit efficiently within industrial shop floors

The Jaewoo VTL-550 is engineered to combine power, precision, and automation, making it an excellent choice for industrial machining applications requiring consistent quality and high productivity.
