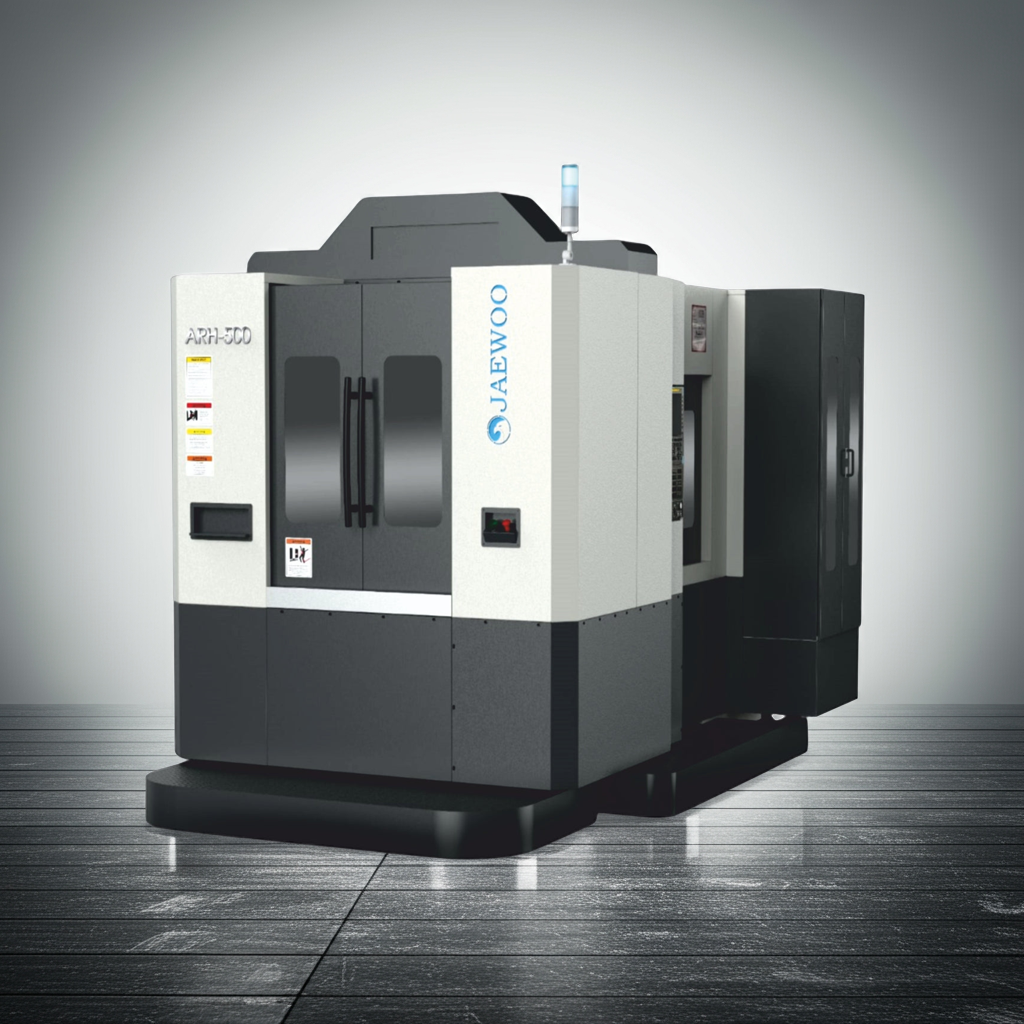

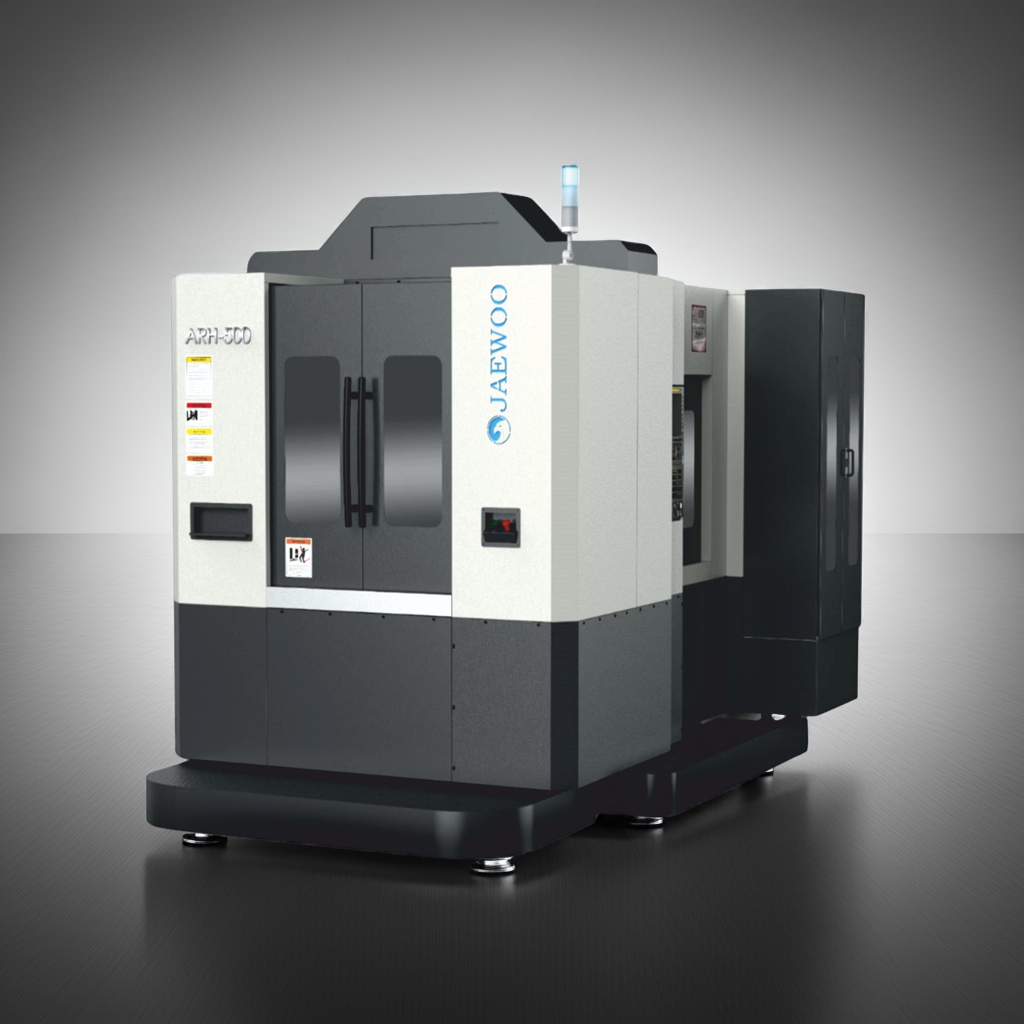

HMC Machine | Jaewoo ARH-500 BT-50 CNC Horizontal Machining Center | FANUC Controller

Jaewoo ARH-500 BT-50 CNC Horizontal Machining Center (HMC Machine) with FANUC Controller delivers high precision, fast machining, and reliable performance for industrial applications. Built with a rigid structure, it ensures stability, accuracy, and long-term durability. Ideal for automotive, aerospace, and heavy engineering industries, this machine offers efficient production with low maintenance.

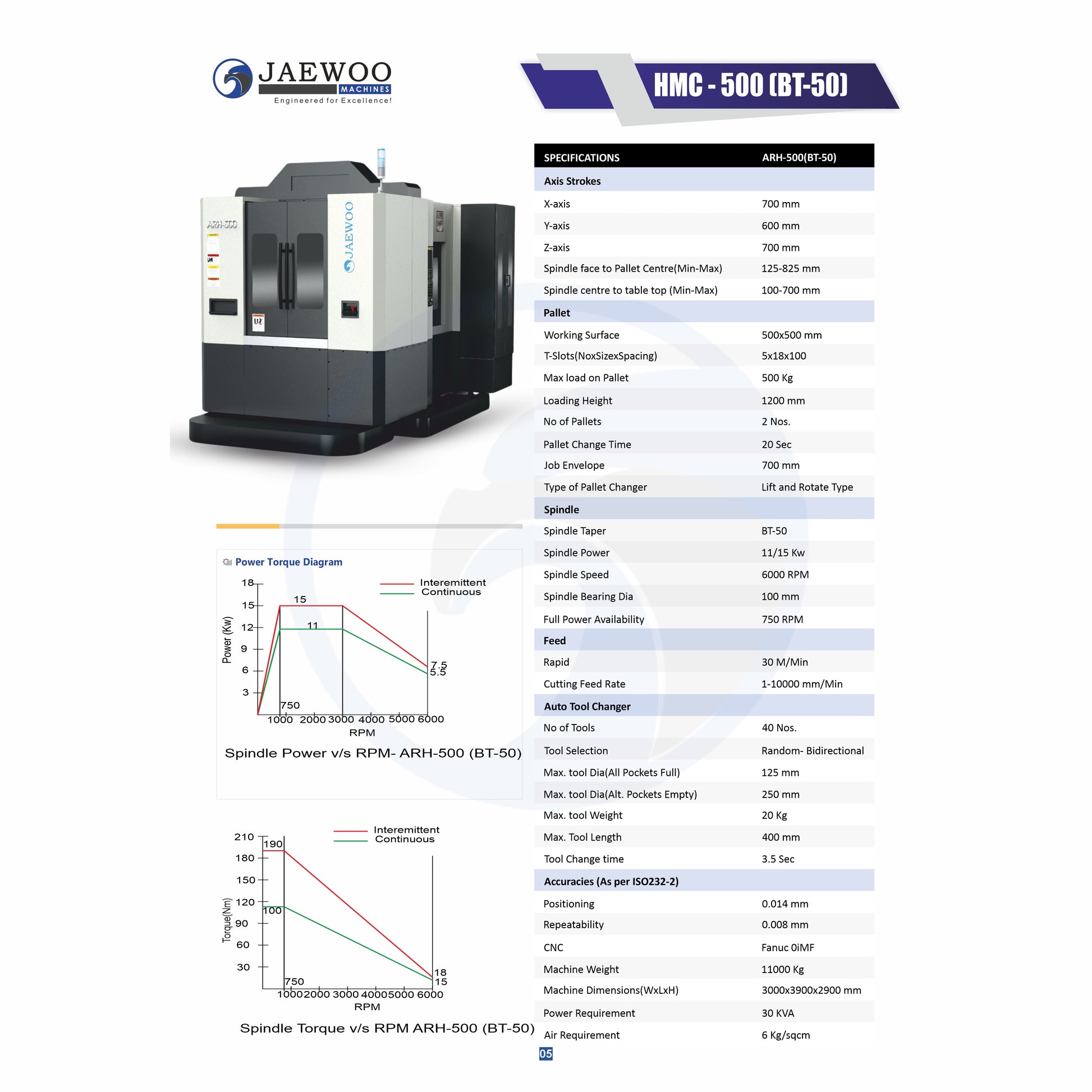

Key Features – Jaewoo ARH-500 (BT-50 HMC)

✔ High Precision HMC Machine – X: 700 mm, Y: 600 mm, Z: 700 mm for versatile machining operations

✔ BT-50 Spindle System – Powerful spindle with up to 6000 RPM for heavy-duty cutting

✔ Strong Spindle Power – 11/15 kW motor for consistent and high-performance machining

✔ Dual Pallet System – 2 pallets with 20 sec pallet change time for continuous production

✔ Large Work Capacity – 500×500 mm pallet size with 500 kg load capacity

✔ Advanced Auto Tool Changer (ATC) – 40 tools capacity for faster and efficient machining cycles

✔ High Feed Rates – Rapid feed up to 30 m/min for increased productivity

✔ Excellent Accuracy – Positioning accuracy 0.014 mm & repeatability 0.008 mm

✔ Heavy Duty Structure – 11000 kg machine weight for stability and vibration-free operation

✔ FANUC CNC System for reliable control and smooth performance

✔ Optimized Chip-to-Chip Time – 3.5 sec tool change for faster cycle time

✔ Industrial Ready Design – Compact footprint with high efficiency for shop floor use
