VMC vs HMC vs DTC Machines: Complete Comparison and Selection Guide

Introduction: Choosing the Right CNC Machining Center

In modern CNC manufacturing, selecting the right machining center is essential for improving productivity, machining accuracy and long-term operational efficiency. Every component has different manufacturing requirements based on its size, geometry, raw material, tolerance, surface finish, production quantity and target cycle time.

A machine that performs well for aluminium electronic housings may not be suitable for heavy cast-iron components. Similarly, a machining center selected for flexible job-work production may not deliver the best results in high-volume drilling and tapping operations.

Manufacturers therefore need to understand the differences between the main types of CNC machining centers before investing in new equipment.

Three of the most commonly evaluated machining systems are:

• Vertical Machining Centers
• Horizontal Machining Centers
• Drill Tapping Centers

A Vertical Machining Center, commonly known as a VMC machine, is widely used for general-purpose milling, drilling, tapping, boring and profile machining.

A Horizontal Machining Center, commonly known as an HMC machine, is generally selected for multi-side component machining, larger production volumes and applications where efficient chip evacuation is important.

A Drill Tapping Center, commonly known as a DTC machine, is optimized for high-speed drilling, tapping and light milling operations, especially on small and medium-sized components.

All three machine types use CNC technology, automatic tool-changing systems and programmed machining operations. However, their structures, spindle orientations, production capabilities and ideal applications are different.

Jaewoo Machines provides VMC machines, HMC machines, DTC machines and other CNC solutions for automotive, aerospace, electronics, medical equipment, die and mould, heavy engineering and general manufacturing applications.

This guide explains the construction, working principles, advantages, limitations and applications of VMC, HMC and DTC machines. It also provides a detailed comparison to help manufacturers select a suitable CNC machining center for their production requirements.

What Is a CNC Machining Center?

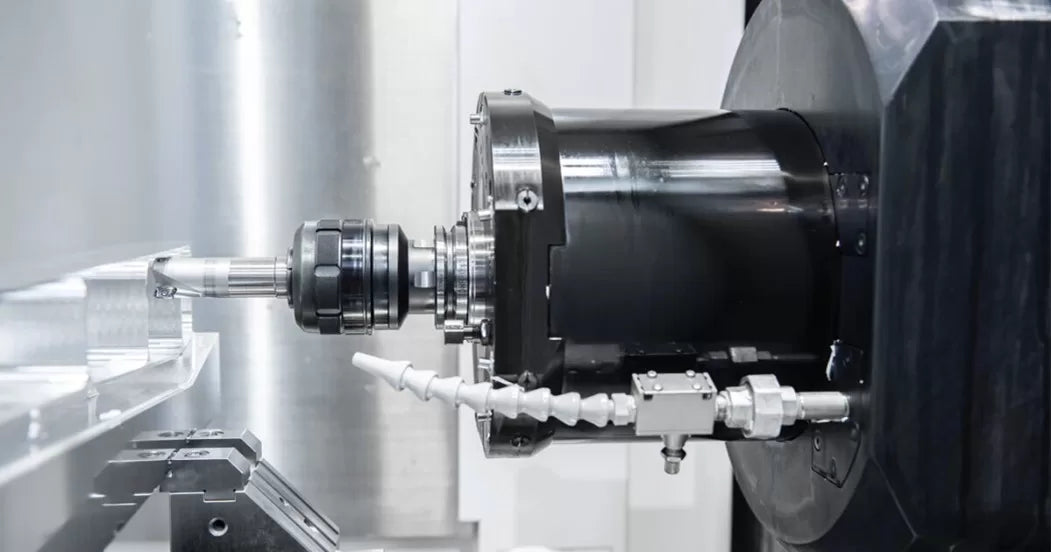

A CNC machining center is a computer-controlled machine tool designed to perform several machining operations within one setup.

Unlike a basic conventional milling or drilling machine, a machining center normally includes an Automatic Tool Changer. This allows the machine to select and change tools automatically according to the CNC programme.

A single component may require several operations, such as:

• Face milling
• Pocket milling
• Slot machining
• Drilling
• Tapping
• Boring
• Reaming
• Thread milling
• Chamfering
• Profile finishing

A machining center can complete these operations by automatically changing between face mills, end mills, drills, taps, reamers and boring tools.

The CNC controller manages:

• Axis movement
• Spindle speed
• Feed rate
• Tool selection
• Tool changes
• Coolant operation
• Work offsets
• Tool offsets
• Machining sequence

This automation helps manufacturers reduce repeated manual setups and maintain more consistent production quality.

Why Selecting the Correct Machining Center Matters

Choosing the wrong machine may create production problems even when the machine appears capable of completing the component.

An incorrectly selected machine may result in:

• Longer cycle time
• Excessive component handling
• Limited tool access
• Poor chip evacuation
• Higher fixture costs
• Increased machine downtime
• Lower production output
• Difficulty adding automation
• Unnecessary investment in unused capacity

The correct machining center should match the complete manufacturing process rather than only the component dimensions.

Manufacturers should evaluate:

• Number of machining operations
• Number of component sides
• Raw-material type
• Required tolerance
• Surface-finish requirement
• Monthly production quantity
• Tool capacity
• Workholding method
• Automation requirement
• Available factory space
• Budget and expected return on investment

1. Vertical Machining Centers

What Is a VMC Machine?

A Vertical Machining Center is a CNC machining center with a vertically oriented spindle.

The cutting tool is held in the spindle above the workpiece. During machining, the rotating tool approaches the component from the top while the table and machine axes position the workpiece according to the CNC programme.

VMC machines are among the most widely used CNC machining centers because they provide a practical combination of precision, flexibility, accessibility and cost-effectiveness.

They are commonly used by:

• Automotive component manufacturers
• Aerospace suppliers
• Tool rooms
• Die and mould manufacturers
• Electronics companies
• Medical-equipment manufacturers
• General engineering businesses
• Job-work machining units

A VMC machine is suitable for manufacturers that produce different component types and require a flexible CNC system capable of performing several operations.

Structure and Working of a VMC Machine

A standard VMC machine generally uses three primary linear axes:

• X-axis
• Y-axis
• Z-axis

The X-axis usually controls left-to-right table movement. The Y-axis controls front-to-back movement, while the Z-axis controls vertical movement between the spindle and workpiece.

The component is clamped on the machine table using:

• Machine vice
• Mechanical fixture
• Hydraulic fixture
• Pneumatic fixture
• Modular clamping system
• Vacuum fixture
• Rotary table

The spindle holds the cutting tool and rotates it at the programmed speed. The CNC controller coordinates the axis movements and toolpath to remove material from the workpiece.

A typical VMC machining cycle may include:

1. Face milling the reference surface.
2. Rough milling a pocket.
3. Finish milling the profile.
4. Drilling several holes.
5. Tapping threaded holes.
6. Boring a precision diameter.
7. Chamfering sharp edges.

The Automatic Tool Changer selects the required tool for each operation.

Main Components of a VMC Machine

Machine Base and Column

The machine base and column form the main structure of a VMC.

A rigid structure helps resist cutting forces and vibration during machining. Better rigidity can contribute to improved surface finish, dimensional consistency and cutting-tool life.

The base also supports other systems such as:

• Guideways
• Ball screws
• Coolant tank
• Chip-management system
• Table assembly

Vertical Spindle

The spindle rotates the cutting tool and performs material removal.

Important spindle specifications include:

• Maximum spindle speed
• Spindle power
• Spindle torque
• Tool interface
• Bearing arrangement
• Cooling system

High spindle speed may be useful for aluminium, small cutting tools and mould finishing. Higher torque may be more important for steel, cast iron and heavy material removal.

Machine Table

The workpiece and fixture are mounted on the table.

Important table specifications include:

• Table length
• Table width
• Maximum table load
• T-slot size
• Distance between spindle and table

Manufacturers should consider both the component size and fixture dimensions when selecting table capacity.

Automatic Tool Changer

The Automatic Tool Changer stores several cutting tools and changes them automatically.

A tool magazine may contain:

• Face mills
• End mills
• Drills
• Taps
• Reamers
• Boring tools
• Chamfer tools
• Thread mills

Tool-magazine capacity should match the number of operations and the variety of components being produced.

CNC Controller

The CNC controller manages the machine programme, axis movements, tool changes, spindle operation and alarms.

The selected controller should match:

• Operator familiarity
• Programming requirements
• Existing factory standards
• CAD/CAM software
• Automation plans
• Service support

Main Machining Operations Performed on a VMC

VMC machines can perform a broad range of machining operations.

Face Milling

Face milling creates a flat reference surface on the component.

This operation is often performed before other features because it provides a stable dimensional reference.

Pocket Milling

Pocket milling removes material from an enclosed area.

It is commonly used for:

• Housings
• Moulds
• Fixtures
• Structural components
• Electronic enclosures

Slot Milling

Slot milling produces straight or curved slots.

Slots may be required for:

• Keys
• Component movement
• Assembly
• Fastening
• Fluid passages

Drilling

The VMC can create hole patterns with programmed positioning.

This is especially useful when multiple holes must maintain accurate spacing.

Tapping

Tapping produces internal threads.

Rigid tapping allows the spindle rotation and feed movement to remain synchronized.

Boring

Boring enlarges and finishes an existing hole.

It is selected when the hole requires better diameter control, roundness or surface finish than drilling alone can provide.

Contour Machining

Contour machining creates curved, angled or complex profiles.

It is commonly used in:

• Die and mould manufacturing
• Aerospace components
• Automotive parts
• Medical equipment
• Product development

Key Advantages of VMC Machines

High Versatility for Different Components

One of the greatest advantages of a VMC machine is its ability to handle many different machining operations and workpiece types.

Manufacturers can produce different components by changing:

• CNC programme
• Fixture
• Cutting tools
• Work offsets
• Raw material

This makes VMC machines useful for job shops and businesses with frequently changing production requirements.

Easy Workpiece Loading and Setup

The vertical arrangement generally provides clear access to the table and fixture.

Operators can inspect the workpiece, install clamps and check tool clearance more easily than in some enclosed multi-pallet systems.

This accessibility can help reduce setup time for small and medium production batches.

Strong Precision and Repeatability

A correctly installed and maintained VMC can provide consistent axis positioning and repeatable machining cycles.

Final accuracy depends on:

• Machine condition
• Tooling
• Fixture rigidity
• Machine calibration
• Tool offsets
• Temperature
• Programming

Lower Investment Compared with Many HMC Configurations

A VMC is generally more affordable than an HMC with similar working capacity.

This makes it an attractive option for:

• Small and medium manufacturers
• Tool rooms
• Job-work businesses
• New CNC users
• Flexible production environments

Good Visibility of the Machining Area

The operator can generally observe the fixture and machining area clearly during setup and programme verification.

This can simplify:

• First-piece machining
• Tool setting
• Fixture inspection
• Programme proving

Fourth-Axis Integration

Many VMC machines can be equipped with a fourth-axis rotary table.

This allows indexed machining of several component sides and can reduce manual repositioning.

Limitations of VMC Machines

Chip Accumulation on the Workpiece

Because the spindle approaches from above, chips may remain inside pockets, cavities and horizontal surfaces.

Poor chip evacuation can cause:

• Chip recutting
• Tool wear
• Surface damage
• Coolant blockage
• Inspection problems

Suitable coolant delivery, chip flushing and compressed-air strategies may be required.

More Setups for Multi-Side Components

A basic three-axis VMC machines the component mainly from the top.

If several sides require machining, the operator may need to reposition the component manually or use a rotary axis.

Repeated setups can increase:

• Handling time
• Fixture requirements
• Alignment errors
• Total cycle time

Lower Production Efficiency for Certain High-Volume Components

For high-volume multi-side components, an HMC with a rotary table and pallet system may provide better spindle utilization.

Applications of VMC Machines

Automotive Industry

VMC machines are used for:

• Engine housings
• Transmission components
• Suspension brackets
• Brake parts
• Motor housings
• Battery mounting components
• Jigs and fixtures

Aerospace Industry

Applications include:

• Structural brackets
• Aluminium housings
• Equipment components
• Precision fixtures
• Aerospace prototypes

Electronics Industry

VMC machines can manufacture:

• Heat sinks
• Electronic housings
• Connector components
• Sensor bodies
• Control-panel parts

Medical Industry

Applications may include:

• Medical-device housings
• Surgical-equipment parts
• Diagnostic-machine components
• Precision fixtures

Die and Mould Industry

VMC machines are widely used for:

• Injection moulds
• Press tools
• Die plates
• Mould inserts
• Fixtures
• Gauges

2. Horizontal Machining Centers

What Is an HMC Machine?

A Horizontal Machining Center is a CNC machining center with a horizontally oriented spindle.

Instead of approaching the workpiece from above, the cutting tool approaches it from the side.

HMC machines commonly include:

• Rotary indexing tables
• Pallet-changing systems
• Larger tool magazines
• Through-spindle coolant
• Multi-component fixtures
• Automated workpiece handling

The horizontal structure makes HMC machines particularly suitable for components that require machining on several sides.

They are widely used for:

• Automotive housings
• Gearbox components
• Hydraulic manifolds
• Pump bodies
• Valve bodies
• Heavy engineering components
• Industrial castings

Structure and Working of an HMC Machine

The component is mounted on a pallet, rotary table or tombstone fixture.

A tombstone fixture can hold several components or expose multiple machining faces.

The rotary table indexes the component to present different sides to the spindle.

For example, one setup may allow machining of:

• Front face
• Side face
• Back face
• Opposite side face

This reduces the need to remove and reposition the component manually.

A typical HMC production cycle may involve:

1. Loading a component on one pallet.
2. Machining another component inside the machine.
3. Completing milling, drilling, tapping and boring.
4. Automatically changing the pallet.
5. Beginning the next machining cycle.
6. Unloading the completed component outside the machining area.

This arrangement can improve spindle utilization because setup and machining may occur simultaneously.

Main Components of an HMC Machine

Horizontal Spindle

The spindle is positioned parallel to the factory floor.

This orientation can provide improved chip evacuation because gravity helps chips fall away from many machined surfaces.

Rotary Table

The rotary table indexes the workpiece and exposes different component sides.

This allows multi-face machining with fewer setups.

Pallet-Changing System

A pallet changer allows one pallet to be prepared while another is being machined.

This reduces non-cutting time and improves production efficiency.

Tombstone Fixture

A tombstone is a multi-face fixture mounted on the rotary table.

It may hold:

• One large component
• Several small components
• Different component variants

Tombstone fixtures are useful in high-volume and flexible manufacturing.

Large Tool Magazine

HMC machines often use larger tool magazines because multi-side components may require many tools.

A larger magazine can also support sister tools for longer production runs.

Key Advantages of HMC Machines

Multi-Side Machining in One Setup

The rotary table allows several sides of a component to be machined without repeated manual repositioning.

This can improve:

• Feature alignment
• Dimensional relationships
• Production speed
• Setup consistency

Better Chip Evacuation

The horizontal spindle orientation generally allows chips to fall away from vertical machined surfaces.

Efficient chip removal can reduce:

• Chip recutting
• Surface damage
• Cutting-tool wear
• Coolant contamination

Chip evacuation remains dependent on component geometry, fixture design and coolant delivery.

Higher Spindle Utilization

Pallet-changing systems allow loading and unloading to take place outside the machining area.

The spindle can continue cutting while the next component is prepared.

This can significantly reduce machine idle time in repeat production.

Suitable for Heavy and High-Volume Machining

HMC machines are often selected for rigid fixtures, heavy components and long production runs.

Their structures and pallet systems can support demanding automotive and industrial applications.

Improved Positional Accuracy Between Component Faces

Machining several sides without removing the component can improve the positional relationship between holes, bores and reference surfaces.

Automation and Flexible Manufacturing Integration

HMC machines can be integrated with:

• Pallet pools
• Robotic loading
• Automated storage
• Production monitoring
• Tool-life management
• In-process probing

These systems can support longer unattended production.

Limitations of HMC Machines

Higher Initial Investment

HMC machines generally require a higher investment than VMC and DTC machines.

The total cost may also include:

• Pallets
• Tombstone fixtures
• Tooling
• Automation
• Factory preparation
• Training

More Complex Fixture Planning

Multi-face fixtures and tombstones require careful design.

Poor fixture planning can limit tool access or create chip accumulation.

Larger Floor-Space Requirement

HMC machines and pallet systems generally require more factory space than compact VMC or DTC machines.

Setup May Be More Complex

Although pallet systems improve production efficiency, initial fixture setup and process planning may require more technical preparation.

Applications of HMC Machines

Automotive Manufacturing

HMC machines are widely used for:

• Engine blocks
• Cylinder heads
• Transmission housings
• Gearbox components
• EV motor housings
• Differential housings

Aerospace Manufacturing

Applications may include:

• Structural components
• Aerospace housings
• Hydraulic components
• Landing-gear-related parts
• Precision fixtures

Pump and Valve Manufacturing

HMC machines can produce:

• Pump housings
• Valve bodies
• Hydraulic manifolds
• Industrial castings
• Fluid-control components

Heavy Engineering

Applications include:

• Gearbox housings
• Machine-tool parts
• Construction-equipment components
• Agricultural machinery parts
• Large industrial housings

High-Volume General Engineering

Manufacturers producing stable, repeat components can benefit from HMC pallet systems and automation.

3. Drill Tapping Centers

What Is a DTC Machine?

A Drill Tapping Center is a compact, high-speed CNC machining center primarily designed for drilling, tapping and light milling operations.

A DTC machine normally uses a vertical spindle arrangement similar to a VMC. However, it is generally optimized for:

• Faster spindle acceleration
• Rapid axis movement
• Short tool-change time
• High-speed drilling
• High-speed tapping
• Small and medium workpieces

DTC machines are commonly used for aluminium and light engineering components where cycle time is extremely important.

They are widely used in:

• Automotive manufacturing
• Electronics
• Electrical equipment
• Consumer products
• Medical equipment
• Precision engineering

Structure and Working of a DTC Machine

The component is mounted on the table or fixture, while the vertical spindle holds the cutting tool.

The machine uses programmed X, Y and Z movements to perform:

• Drilling
• Tapping
• Reaming
• Boring
• Chamfering
• Light milling

DTC machines generally have lightweight and fast-moving axis systems compared with heavy-duty machining centers.

A typical DTC cycle may involve:

1. Face milling a small reference surface.
2. Drilling multiple holes.
3. Tapping selected holes.
4. Reaming precision holes.
5. Chamfering hole edges.
6. Light profile milling.

The Automatic Tool Changer moves rapidly between tools to reduce non-cutting time.

Main Features of DTC Machines

High-Speed Spindle

DTC machines generally use high-speed spindles suitable for small and medium cutting tools.

This is particularly useful for:

• Aluminium
• Small holes
• Tapping
• Precision components
• High-volume production

Fast Tool-Changing System

Short tool-change time is one of the main productivity advantages of a DTC machine.

Components requiring many holes can benefit from rapid switching between drills, taps and chamfer tools.

Rapid Axis Movement

Fast acceleration and rapid traverse help reduce the time spent moving between machining positions.

Compact Machine Design

DTC machines generally occupy less floor space than many large VMC and HMC machines.

This can be useful for factories with limited production area.

Automation Compatibility

DTC machines can be integrated with:

• Robotic loading
• Automatic doors
• Rotary tables
• Multi-component fixtures
• Pallet arrangements
• Conveyors

Key Advantages of DTC Machines

High Productivity in Drilling and Tapping

DTC machines are optimized for repeated hole-making operations.

Their high-speed spindle, rapid axes and fast tool changer help reduce cycle time.

Cost-Effective for Suitable Components

For small and medium components involving mainly drilling, tapping and light milling, a DTC may provide better cost efficiency than a larger heavy-duty VMC.

Compact and Space-Efficient

The compact design allows manufacturers to install more machines within the same production area.

Suitable for Multi-Component Fixtures

Several small components can be mounted on one fixture to improve output per cycle.

Accurate Hole Positioning

CNC axis control helps maintain consistent spacing and location between drilled and tapped holes.

Limitations of DTC Machines

Limited Heavy-Cutting Capability

DTC machines are generally not designed for extremely heavy roughing or large cutting tools.

They may not be suitable for:

• Heavy cast-iron machining
• Large steel components
• Deep heavy milling
• High-torque material removal

Smaller Component Capacity

DTC machines generally have smaller table sizes and axis travels compared with larger VMC machines.

Primarily Optimized for Light Machining

Although a DTC can perform light milling, it should not automatically be treated as a replacement for a heavy-duty VMC.

Applications of DTC Machines

Automotive Industry

DTC machines can manufacture:

• Aluminium engine components
• Transmission housings
• EV motor housings
• Brake-system components
• Precision brackets

Electronics Industry

Applications include:

• Electronic enclosures
• Heat sinks
• Connector housings
• Communication-device components
• Precision aluminium parts

Electrical Equipment

DTC machines can produce:

• Motor housings
• Electrical brackets
• Control components
• Switchgear parts
• Connector plates

Medical Equipment

Applications may include:

• Medical-device housings
• Instrument components
• Precision brackets
• Laboratory-equipment parts

Consumer Products

DTC machines can support high-volume production of:

• Appliance components
• Hardware
• Aluminium product parts
• Precision accessories

VMC vs HMC vs DTC: Detailed Comparison

Comparison Factor	VMC Machine	HMC Machine	DTC Machine
Spindle orientation	Vertical	Horizontal	Vertical
Main purpose	General milling and machining	Multi-side and high-volume machining	High-speed drilling and tapping
Typical operations	Milling, drilling, tapping, boring, contouring	Milling, drilling, tapping, boring on multiple faces	Drilling, tapping, reaming and light milling
Component size	Small to large, depending on model	Medium to large, depending on model	Usually small to medium
Heavy cutting	Moderate to high, depending on design	Generally suitable for heavier production	Limited
Tool-change speed	Fast	Fast	Very fast
Multi-side machining	Requires repositioning or rotary axis	Strong capability through rotary table	Limited unless rotary axis is added
Chip evacuation	Moderate	Generally better	Moderate
Setup accessibility	Generally easy	More complex but production efficient	Generally easy
Floor-space requirement	Moderate	Higher	Lower
Initial investment	Moderate	Higher	Low to moderate
Pallet automation	Available on selected systems	Common and highly effective	Available on selected systems
Best production type	Flexible, low to medium and repeat production	Medium to high-volume multi-face production	High-volume hole-making and light machining
Typical materials	Steel, cast iron, aluminium, plastics	Steel, cast iron, aluminium and heavy castings	Aluminium, non-ferrous materials and light components
Common industries	Automotive, aerospace, moulds, general engineering	Automotive, aerospace, pumps, heavy engineering	Automotive, electronics, medical and consumer products

Detailed Difference Between VMC, HMC and DTC Machines

Spindle Orientation

A VMC and DTC use vertically oriented spindles, while an HMC uses a horizontal spindle.

The vertical spindle provides easy access to the table and is practical for top-side machining.

The horizontal spindle is more suitable for multi-face machining and can support better chip flow in many applications.

Machining Capability

A VMC is a general-purpose machining center capable of performing a broad range of milling and hole-making operations.

An HMC provides similar cutting capabilities but is optimized for multi-side and pallet-based production.

A DTC focuses mainly on fast drilling, tapping and light milling.

Production Volume

A VMC is suitable for flexible production, job work and medium-volume manufacturing.

An HMC is often selected for stable, medium- and high-volume components requiring several machined faces.

A DTC is ideal for high-volume components with many drilled and tapped holes.

Component Complexity

A VMC can produce complex top-side profiles and three-dimensional contours.

An HMC is better suited to components requiring machining across several faces.

A DTC is most efficient for comparatively lighter components with repeated hole patterns and limited heavy milling.

Chip Management

Chip evacuation is generally easier in an HMC because chips can fall away from vertical component surfaces.

VMC and DTC machines may require additional flushing when machining deep pockets and cavities.

Tool Capacity

VMC machines offer different magazine capacities depending on model and application.

HMC machines often have larger tool magazines for multi-side production and long unattended cycles.

DTC machines normally use compact, fast-changing tool systems.

Automation Capability

All three machine types can support automation.

VMC automation may include robotic loading and fourth-axis systems.

HMC automation may include pallet pools, robots and flexible manufacturing systems.

DTC automation may include automatic doors, small-component robots and multi-component fixtures.

Which Machine Is Best for Different Manufacturing Requirements?

Choose a VMC Machine When:

A VMC may be the right choice when:

• You manufacture different component types.
• You require milling, drilling, tapping and boring.
• Easy setup and operator access are important.
• Production volume is low to medium.
• Component machining is mainly from the top.
• A fourth axis can handle additional sides.
• You need a cost-effective general machining center.

Choose an HMC Machine When:

An HMC may be more suitable when:

• Components require machining on several sides.
• Production volume is medium or high.
• Reducing component repositioning is important.
• Pallet-based production is required.
• Efficient chip evacuation is important.
• The component uses many cutting tools.
• Unattended or automated production is planned.

Choose a DTC Machine When:

A DTC may be suitable when:

• Most operations involve drilling and tapping.
• High-speed production is important.
• Components are small or medium-sized.
• The primary material is aluminium or another light material.
• Short tool-change time is critical.
• Factory floor space is limited.
• Heavy roughing is not required.

Factors to Consider Before Buying a VMC, HMC or DTC

Component Drawing and Dimensions

Study the complete component drawing before selecting a machine.

Review:

• Overall length
• Width
• Height
• Component weight
• Number of machined faces
• Hole sizes
• Pocket depths
• Tolerances
• Surface finish

Raw Material

Raw material affects machine rigidity, spindle torque, coolant and tool selection.

Common materials include:

• Steel
• Stainless steel
• Cast iron
• Aluminium
• Brass
• Engineering plastics

Number of Machined Sides

A top-side component may be suitable for a VMC or DTC.

A component requiring four-sided machining may justify an HMC or rotary-axis VMC.

Production Quantity

Monthly production quantity determines whether advanced automation and pallet systems are financially justified.

Required Cycle Time

The target cycle time should include:

• Loading
• Clamping
• Tool movement
• Cutting
• Tool changes
• Inspection
• Unloading

Tool Requirement

A component requiring many operations may need a larger tool magazine.

Fixture Requirement

Fixture design affects:

• Component loading
• Machining accuracy
• Tool access
• Chip evacuation
• Cycle time

Automation Requirement

Automation is most effective when:

• The component design is stable.
• Production quantity is sufficient.
• Loading is repetitive.
• Component orientation is predictable.
• The machining process is already reliable.

Service and Support

Before purchasing, manufacturers should confirm:

• Installation
• Operator training
• Warranty
• Preventive maintenance
• Breakdown support
• Spare-parts availability
• Remote assistance

CNC Automation for VMC, HMC and DTC Machines

CNC machining centers can be integrated with automated material-handling systems to improve production efficiency.

A typical automated machining cycle may include:

1. Presenting the raw component.
2. Picking it using a robot.
3. Loading it into the fixture.
4. Activating automatic clamping.
5. Running the machining cycle.
6. Measuring selected dimensions.
7. Unloading the finished component.
8. Transferring it to a conveyor.
9. Loading the next workpiece.

VMC Automation

VMC machines can be integrated with:

• Robotic loading
• Automatic doors
• Fourth-axis systems
• Multi-component fixtures
• Pallet systems

HMC Automation

HMC machines can support:

• Automatic pallet changers
• Pallet pools
• Robotic loading
• Flexible manufacturing cells
• Tool-life management
• Centralized monitoring

DTC Automation

DTC machines can be integrated with:

• Small-component robots
• Automatic doors
• Multi-part fixtures
• Rotary indexing tables
• Compact conveyors

Preventive Maintenance of Machining Centers

Regular maintenance helps protect machine accuracy, productivity and service life.

Daily Checks

Operators should:

• Remove metal chips.
• Check coolant levels.
• Check lubrication.
• Inspect cutting tools.
• Verify air and hydraulic pressure.
• Inspect the fixture.
• Check safety systems.

Weekly Checks

Maintenance may include:

• Cleaning filters
• Inspecting tool holders
• Cleaning spindle tapers
• Checking the chip conveyor
• Inspecting the tool magazine
• Draining moisture from air systems

Periodic Checks

Technicians should periodically:

• Check machine levelling.
• Measure spindle runout.
• Inspect ball screws.
• Check axis backlash.
• Verify tool-changer alignment.
• Inspect rotary-table accuracy.
• Back up CNC programmes and parameters.

The exact maintenance schedule should follow the selected machine’s operating manual.

Why Choose Jaewoo Machines?

Jaewoo Machines provides CNC machining solutions for automotive, aerospace, electronics, medical equipment, heavy engineering and general manufacturing applications.

Jaewoo Machine Range

The Jaewoo Machines portfolio includes:

• Vertical Machining Centers
• Horizontal Machining Centers
• Drill Tapping Centers
• CNC turning machines
• CNC lathe machines
• Vertical Turning Lathes
• Twin-spindle CNC machines
• Robotic automation systems
• Gantry-loading solutions

Application-Based Machine Selection

Manufacturers can share:

• Component drawing
• Raw-material details
• Required tolerance
• Surface-finish requirement
• Monthly production quantity
• Existing machining process
• Current cycle time
• Target cycle time
• Tooling requirement
• Fixture requirement
• Automation requirement

These details help determine whether the application requires a VMC, HMC, DTC or another CNC machine configuration.

Customized CNC Solutions

Depending on the selected machine model and technical feasibility, solutions may be evaluated with:

• Controller options
• Rotary tables
• Probing
• Tool magazines
• Coolant systems
• Chip conveyors
• Robotic loading
• Pallet systems
• Production monitoring

Installation and Operator Training

Proper installation and operator training help manufacturers use the machine more effectively.

Training may include:

• Machine operation
• Programme selection
• Tool offsets
• Work offsets
• Tool loading
• Daily maintenance
• Safety procedures
• Basic troubleshooting

Conclusion

VMC, HMC and DTC machines are all important CNC machining solutions, but each one is designed for a different production requirement.

A VMC machine provides flexibility and is suitable for milling, drilling, tapping, boring and contour machining. It is often selected for job work, general engineering, mould manufacturing and flexible component production.

An HMC machine is best suited to multi-side machining, pallet-based production and medium- or high-volume industrial applications. Its horizontal spindle arrangement and rotary-table capability can reduce repeated component handling and improve spindle utilization.

A DTC machine is optimized for high-speed drilling, tapping and light milling. It is particularly effective for small and medium-sized aluminium components used in automotive, electronics, electrical and precision engineering industries.

The right machining center should be selected after evaluating:

• Component size
• Raw material
• Number of machined sides
• Required operations
• Tolerance
• Surface finish
• Monthly production quantity
• Target cycle time
• Tooling
• Fixture
• Automation
• Available budget

Manufacturers should avoid selecting a machine only according to purchase price or spindle speed. The best machine is the one that produces the required component quality and production output at a sustainable cost.

Jaewoo Machines provides VMC, HMC, DTC and automation solutions designed for different industrial requirements. By combining the correct machine with suitable tooling, fixtures, programming and technical support, manufacturers can improve machining productivity and prepare their operations for future growth.

Frequently Asked Questions

1. What is the main difference between VMC, HMC and DTC machines?

A VMC uses a vertical spindle for general milling and machining. An HMC uses a horizontal spindle for multi-side and high-volume production. A DTC is optimized for high-speed drilling, tapping and light milling.

2. Which machine is best for general CNC machining?

A VMC is generally the most flexible choice for milling, drilling, tapping, boring and contour machining.

3. Which machine is best for multi-side machining?

An HMC is generally the better choice for components requiring machining on several sides in one setup.

4. Which machine is best for drilling and tapping?

A DTC is specifically designed for high-speed drilling and tapping operations.

5. Is a DTC the same as a VMC?

No. Both may use vertical spindles, but a DTC is optimized for speed, drilling, tapping and light milling, while a VMC offers broader and often heavier machining capability.

6. Is an HMC more productive than a VMC?

An HMC may provide higher productivity for multi-side and high-volume components because of rotary tables and pallet-changing systems. For simple or flexible work, a VMC may be more economical.

7. Which machine provides better chip evacuation?

An HMC generally provides better chip evacuation because chips can fall away from many machined surfaces.

8. Which machine has the lowest investment?

A compact DTC or entry-level VMC generally requires less investment than an HMC, although final cost depends on capacity and configuration.

9. Can a VMC machine perform tapping?

Yes. VMC machines can perform drilling, tapping, boring, milling and several other operations.

10. Can a DTC perform milling?

Yes. A DTC can perform light milling, but it is generally not designed for extremely heavy material removal.

11. Can an HMC machine perform drilling and tapping?

Yes. HMC machines can perform milling, drilling, tapping, boring and other machining operations.

12. Which machine is best for aluminium components?

VMC and DTC machines are widely used for aluminium. DTC machines are especially effective when components require many drilled and tapped holes.

13. Which machine is suitable for heavy cast-iron components?

An HMC or heavy-duty VMC may be suitable depending on component size, machining operations and required production volume.

14. Can VMC, HMC and DTC machines be automated?

Yes. All three machine types can be integrated with suitable robotic, pallet and material-handling systems.

15. What affects the price of a machining center?

Price depends on axis travel, spindle, controller, table size, tool magazine, probing, coolant system, automation and optional equipment.

16. How do I choose between a VMC and HMC?

Choose according to the number of machined sides, production quantity, fixture requirement, cycle time, budget and automation plans.

17. What information should be shared for machine selection?

Manufacturers should share the component drawing, raw material, required tolerance, surface finish, monthly production quantity and target cycle time.

18. Where can manufacturers buy VMC, HMC and DTC machines in India?

Manufacturers can contact Jaewoo Machines for VMC, HMC, DTC and application-based CNC automation solutions.
